| Category |
KOBELCO Spare Parts |
| Name |

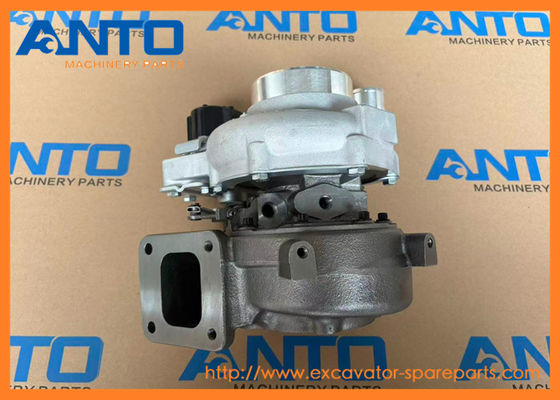

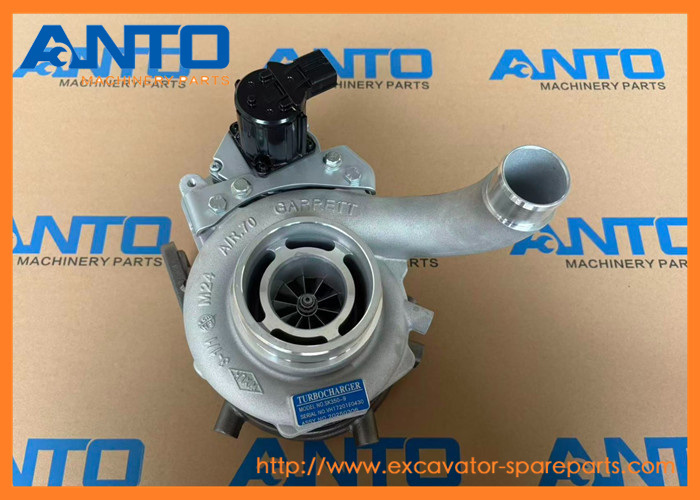

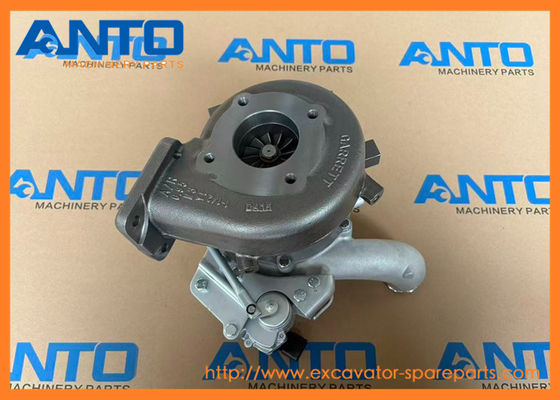

Turbocharger |
| Parts No |
VH17201E0430 |
| Machine Number |
SK350-9 |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT |
| Packing |
As request or standard packing |
1.Power Boost: Increases engine output by 30–40% compared to naturally aspirated engines. For example, it enables the SK300LC-10 excavator to deliver more digging force and faster cycle times when loading trucks or breaking rock.
2.Fuel Efficiency: More complete combustion reduces fuel consumption by 5–10% (vs. non-turbo engines) during high-load operation. This lowers operating costs for equipment owners.
3.Emission Reduction: Improved combustion minimizes harmful emissions (NOₓ, particulate matter) by ensuring fuel is burned cleanly—helping Kobelco equipment meet global emission standards (EU Stage V, US Tier 4 Final).
4.Altitude Adaptability: Compensates for reduced air density at high altitudes, ensuring the engine maintains full power even in mountainous construction sites.
HEAVY EQUIPMENT SK350-9 Kobelco
- More other turbocharger applied to KOBELCO heavey machine
| VHS1760E0201 TURBOCHARGER |
| SK350-9 |
| |
| 241004640A TURBOCHARGER |
| SK350-8 |
| |
| S1760-E0200 TURBOCHARGER |
| SK350-8 |
| |
| VAME078871 TURBOCHARGER |
| SK290LC-6E, SK330LC-6E |
| |
| VAME078660 TURBOCHARGER |
| SK290LC, SK330LC |
| |
| 2854575 TURBOCHARGER |
| SK260, SK295-8 |
| |
| VAME442003 TURBOCHARGER |
| SK250LC-6E |
| |
| VI8971159720 TURBOCHARGER |
| SK135SR, SK120, SK115SRDZ, SK135SRL, SK135SRLC, SK120LC |
| |
| VAME088752 TURBOCHARGER |
| SK200, SK200LC |
| |
| VI8970114741 TURBOCHARGER ASM. TDO 4H |
| SK150LC |
| |
| VI8943675161 TURBOCHARGER |
| SK120LC, LK450, SK120 |
| |
| VX6505725020 TURBOCHARGER |
| SK850 |
| |
| S1750-E0150 TURBOCHARGER |
| SK485LC-9 |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
VHSH55210816 |
[1] |
FLANGE BOLT |
KOB |
| 2 |
VHSH55210825 |
[5] |
FLANGE BOLT |
KOB |
| 3 |
VHSH55211020 |
[2] |
FLANGE BOLT |
KOB |
| 4 |
VHSH55211045 |
[2] |
FLANGE BOLT |
KOB |
| 5 |
VHSL72201210 |
[2] |
WASHER |
KOB Soft |
| 6 |
VHSL72201415 |
[2] |
WASHER |
KOB Soft |
| 7 |
VHS122211680 |
[1] |
PIPE |
KOB Vent |
| 8 |
VH15407E0080 |
[1] |
PIPE |
KOB Turbo Oil Inlet |
| 9 |
16332-E0420 |
[1] |
PIPE |
KOB Water Outlet, No.1 |
| 10 |
VHS166913300 |
[1] |
PIPE |
KOB Coolant |
| 11 |
VH17103E0G10 |
[1] |
PIPE |
KOB Intake, Includes Ref. 7 |
| 12 |
VH17201E0430 |
[1] |
TURBOCHARGER |
KOB Superseded by part number: VH17201E0432 |
| 13 |
VH17291E0440 |
[1] |
ELBOW |
KOB Turbine Outlet |
| 14 |
VHS174582960 |
[1] |
BRACKET |
KOB Exh. Pipe |
| 15 |
VHS241091820 |
[1] |
GASKET |
KOB |
| 16 |
VHS241091830 |
[1] |
GASKET |
KOB |
| 17 |
S2413-51121 |
[2] |
GASKET |
KOB Oil, Outlet |
| 18 |
VHS241721270 |
[1] |
PIPE |
KOB Oil, Outlet |
| 19 |
VHS170AE0040 |
[1] |
STAY |
KOB |
| 20 |
VHSZ11908042 |
[2] |
BOLT |
KOB |
| 21 |
VHSZ12610015 |
[6] |
STUD |
KOB |
| 22 |
VHSZ17810012 |
[8] |
NUT |
KOB Flange |
| 23 |
VHSZ40112001 |
[1] |
BOLT |
KOB |
| 24 |
VHSZ40114004 |
[4] |
BOLT |
KOB |
| 25 |
VHSZ40114007 |
[1] |
BOLT |
KOB |
| 26 |
VHSZ43014003 |
[8] |
WASHER,14.6mm ID x 18.6mm OD x 1.4mm Thk |
KOB Soft Superseded by part number: VHSL72301414 |
| 27 |
VHSZ46011006 |
[2] |
CLAMP |
KOB |
| 28 |
VHSZ92033892 |
[1] |
INTAKE AIR HOSE |
KOB |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
