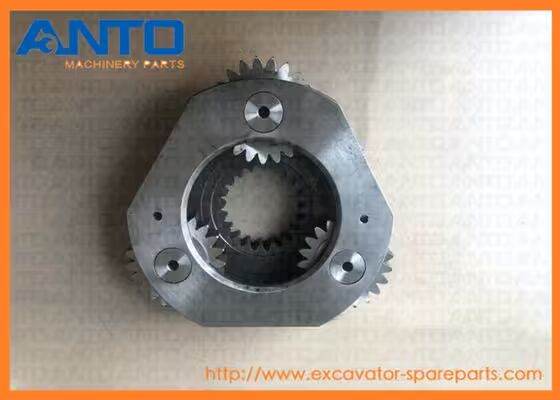

- VOE14599939 Planet Carrier Excavator Travel Gearbox Parts For EC250D EC250E EC300D EC300E
| Name |
Planet Carrier No.2 Assy |
| Parts No |
VOE14599939 14599939 |
| Machine Model |
EC250D EC250E EC300D EC300E |
| Category |
Travel Gearbox Parts |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
| 1.A planet carrier is a key component inside a planetary gear assembly, which is widely used in the final drive / travel motor / reduction gearbox of heavy equipment. |
| |
| 2.It holds and supports the planet gears so they can rotate around the sun gear and ring gear. |
| |
| 3.Its job is to transmit torque and reduce speed to drive the machine’s tracks or wheels smoothly and powerfully. |
EXCAVATOR EC250D EC250E EC300D EC300E
- More other planet carrier parts fit for V O L V O machine
| VOE14603090 Planet carrier |
| EW160D, EW160E, EW180C, EW180D, EW180E, EW205D, EW210D, EW230C, EWR150E |
| |
| VOE15185465 Planet gear |
| EW140C, EW140D |
| |
| VOE14558067 Planet Carrier |
| EW140E, EW145B, EW160C, EW160D, EW180C, EW180D, EW205D, EW210C, EW210D, EW230C |
| |
| VOE14560525 Planet carrier |
| EW140C, EW140D |
| |
| VOE17219487 Planet gear |
| EW160E, EW180C, EW180E, EW205D, EW210D, EWR150E, L45H, L50H |
| |
| VOE14560278 Planet carrier |
| EW140C |
| |
| VOE17443616 Planet gear |
| EW140E, EW145B, EWR150E |
| |
| VOE15185465 Planet gear |
| EW140C, EW140D |
| |
| VOE14603090 Planet carrier |
| EW160D, EW160E, EW180C, EW180D, EW180E, EW205D, EW210D, EW230C, EWR150E |
| |
| VOE1650536 Planet kit |
| A35 |
| |
| VOE11711916 Planet carrier |
| EW140B, L40, L40B, L45, L45B |
| |
| VOE11705028 Planet carrier |
| EW160, EW160B |
| |
| VOE11711960 Planet carrier |
| EW140B, L40, L40B, L45, L45B |
| |
| VOE14558067 Planet Carrier |
| EW140E, EW145B, EW160C, EW160D, EW180C, EW180D, EW205D, EW210C, EW210D, EW230C |
| |
| VOE11705863 Planet carrier |
| EW160, EW160B |
| |
| VOE11713101 Planet gear |
| EW140, EW140B, EW160, EW160B |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE14599921 |
[1] |
Travel gearbox |
|
| 1 |
VOE14599922 |
[1] |
Housing |
|
| 2 |
VOE14599932 |
[1] |
Gear |
|
| 3 |
SA14599923 |
[2] |
Bearing |
|
| 4 |
VOE14599927 |
[1] |
Shim |
THICK = 0,6 MM |
| 4 |
VOE14599928 |
[1] |
Shim |
THICK = 0,8 MM |
| 4 |
VOE14599929 |
[1] |
Shim |
THICK = 1,0 MM |
| 4 |
VOE14599930 |
[1] |
Shim |
THICK = 0,7 MM |
| 4 |
VOE14599931 |
[1] |
Shim |
THICK = 0,9 MM |
| 4 |
VOE14607977 |
[1] |
Shim |
THICK = 1,1 MM |
| 5 |
VOE14599926 |
[1] |
Retainer |
|
| 6 |
VOE14599933 |
[1] |
Planet carrier |
|
| 7 |
14599934 |
[1] |
Carrier |
|
| 8 |
VOE14566415 |
[4] |
Pin |
|
| 9 |
VOE14599935 |
[4] |
Planetary Gear |
|
| 10 |
VOE14566414 |
[8] |
Washer |
|
| 11 |
SA9325-06012 |
[4] |
Spring pin |
|
| 12 |
SA1036-00300 |
[1] |
Ring |
|
| 13 |
VOE14566412 |
[4] |
Needle bearing |
|
| 14 |
VOE983919 |
[16] |
Hex. socket screw |
|
| 15 |
VOE14599938 |
[1] |
Gear |
|
| 16 |
VOE14599939 |
[0001] |
Planet carrier |
|
| 17 |
VOE14599944 |
[3] |
Pin |
|
| 18 |
14599940 |
[1] |
Carrier |
|
| 19 |
VOE14599941 |
[3] |
Planetary Gear |
|
| 20 |
VOE14599943 |
[6] |
Washer |
|
| 21 |
SA9325-06012 |
[3] |
Spring pin |
|
| 22 |
VOE14599942 |
[3] |
Needle Bearing |
|
| 23 |
VOE14566433 |
[1] |
Thrust washer |
|
| 24 |
VOE14599945 |
[1] |
Gear |
|
| 25 |
VOE14599946 |
[1] |
Planet carrier |
|
| 26 |
14599947 |
[1] |
Carrier |
|
| 27 |
VOE14599948 |
[3] |
Planetary Gear |
|
| 28 |
VOE14599950 |
[6] |
Washer |
|
| 29 |
VOE14599951 |
[3] |
Pin |
|
| 30 |
VOE951955 |
[3] |
Spring pin |
|
| 31 |
VOE14599949 |
[3] |
Needle Bearing |
|
| 32 |
VOE14569232 |
[1] |
Ring |
|
| 33 |
VOE14566417 |
[1] |
Ring |
|
| 34 |
VOE14599952 |
[1] |
Gear |
|
| 35 |
VOE9541-01038 |
[1] |
Snap Ring |
|
| 36 |
VOE14599953 |
[1] |
Cover |
|
| 37 |
VOE982211 |
[18] |
Hexagon screw |
|
| 38 |
SA9213-20000 |
[18] |
Spring washer |
|
| 39 |
VOE14883847 |
[2] |
Plug |
|
| 40 |
VOE990557 |
[2] |
O-ring |
|
| 41 |
VOE9324-21617 |
[4] |
Pin |
|
| 42 |
VOE14599925 |
[1] |
Seal |
|
