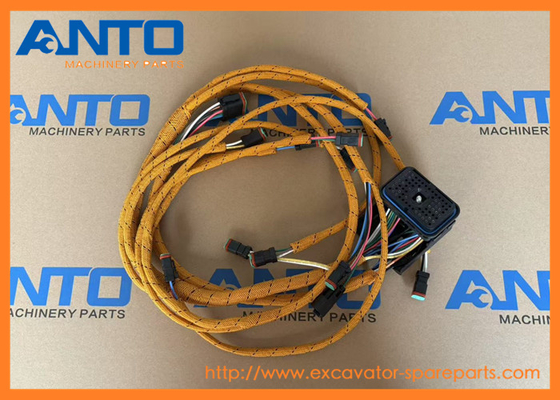

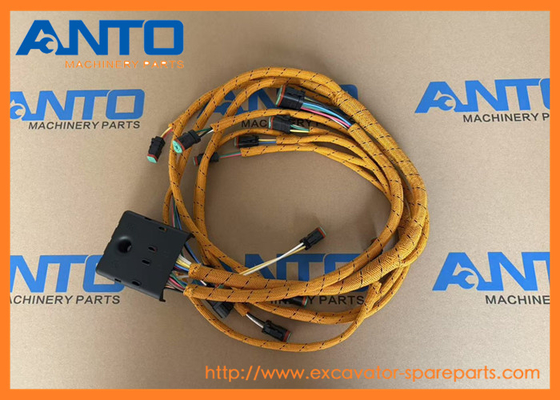

- 222-4086 2224086 Wiring Harness Wheel Loader Electric Parts Fitting For C12 C15 966G II 972G II
| Name |
Wiring Harness |
| Parts No |
222-4086 2224086 |
| Machene Model |
814F 966G II 972G II |
| Category |
Electric Parts |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
A wiring harness, also known as a cable harness or wire loom, is an organized assembly of electrical cables and connectors. The 222-4086 wiring harness is responsible for efficiently and reliably transmitting electrical power and signals within Caterpillar equipment, linking different electrical components to ensure they operate as intended.
ARTICULATED TRUCK 725 730
CHALLENGER MTC835
LANDFILL COMPACTOR 816F
MOTOR GRADER 140H 143H 14H 160H 163H 16H
PIPELAYER 572R II
SOIL COMPACTOR 815F
TRACK FELLER BUNCHER TK1051
TRACK-TYPE TRACTOR D7R II
WHEEL DOZER 814F
WHEEL LOADER 966G II 972G II C.ater.pillar.
- More other harness parts fit for C A T machine
| 1982713 HARNESS AS-ENGINE |
| 120K, 12K, 140G, 140K, 140K 2, 140M, 160K, 324D, 324D FM, 324D FM LL, 324D L, 324D LN, 325D, 325D FM, 325D FM LL, 325D L, 325D MH, 328D LCR, 329D, 329D L, 329D LN, 525C, 535C, 545C, 573, 584, 815B, 95... |
| |
| 2225917 HARNESS AS-ENGINE |
| 120K, 120K 2, 12K, 12M, 140G, 140K, 140K 2, 140M, 160K, 324D, 324D FM, 324D FM LL, 324D L, 324D LN, 325D, 325D FM, 325D FM LL, 325D L, 325D MH, 326D L, 328D LCR, 329D, 329D L, 329D LN, 525C, 535C, 545... |
| |
| 3812499 HARNESS AS-WIRING |
| 120K, 120K 2, 12K, 140K, 140K 2, 160K, 324D, 324D FM, 324D L, 324D LN, 325D, 325D FM, 325D FM LL, 325D L, 325D MH, 326D L, 328D LCR, 329D, 329D L, 329D LN, 525C, 535C, 545C, 950H, 962H, AP-1055D, BG-2... |
| |
| 2897459 HARNESS AS-REAR LIGHTING |
| 950H, 962H, 966H, 972H |
| |
| 3039296 HARNESS AS-LIGHTING |
| 950H, 962H, 966H, 972H |
| |
| 2750025 HARNESS AS-SENSOR |
| 950H, 962H |
| |
| 2463400 HARNESS AS-CONTROL |
| 950H, 962H, 980H |
| |
| 2662830 HARNESS AS-LIGHTING |
| 950H |
| |
| 2662831 HARNESS AS-LIGHTING |
| 950H |
| |
| 2719448 HARNESS AS-LIGHTING |
| 950H |
| |
| 3151978 HARNESS AS-LIGHTING |
| 950H |
| |
| 3916313 HARNESS AS-WIRING |
| 950H, 962H |
| |
| 2983649 HARNESS AS-CHASSIS |
| 950H, 962H, IT62H |
| |
| 2478475 HARNESS AS-SENSOR |
| 950H, 962H, IT62H |
| |
| 2478474 HARNESS AS-SENSOR |
| 950H, 962H, IT62H |
| |
| 3137492 HARNESS AS-WIRING |
| 631G, 637G |
| |
| 2637126 HARNESS AS-CHASSIS |
| 631G, 637G |
| |
| 2472831 HARNESS AS-FUEL TANK |
| 631G, 637G |
| |
| 2714036 HARNESS AS-LIGHTING |
| 950H, 962H, IT62H |
| |
| 2714035 HARNESS AS-LIGHTING |
| 950H, 962H, IT62H |
| |
| 2714017 HARNESS AS-LIGHTING |
| 950H, 962H, 966H, 972H, IT62H |
| |
| 2654407 HARNESS AS-FRONT CHASSIS |
| IT62H |
| |
| 3240677 HARNESS AS-STARTING AID |
| 950H, 962H, IT62H |
| |
| 2636668 HARNESS AS-STARTING AID |
| 950H, 962H, IT62H |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
2M-7077 |
[1] |
SPACER (0.406X0.62X0.37-IN THK) |
|
| 2 |
3E-7448 |
[1] |
CONNECTOR |
|
| 3 |
3S-2093 |
[6] |
STRAP-CABLE |
|
| 4 |
9X-0262 |
[2] |
ADAPTER |
|
| 5 |
197-8391 Y |
[1] |
SENSOR GP-TEMPERATURE (FUEL) |
|
| 6 |
197-8392 Y |
[1] |
SENSOR GP-TEMPERATURE (WATER, COOLANT) |
|
| 7 |
197-8393 Y |
[1] |
SENSOR GP-PRESSURE (ATMOSPHERIC) |
|
| 8 |
197-8394 Y |
[1] |
SENSOR GP-PRESSURE (ENGINE OIL) |
|
| 9 |
197-8396 Y |
[1] |
SENSOR GP-SPEED (CRANKSHAFT TIMING) |
|
| 10 |
197-8397 Y |
[1] |
SENSOR GP-SPEED (CAMSHAFT TIMING) |
|
| 11 |
219-6540 |
[1] |
HARNESS AS-SENSOR (FUEL PRESSURE) |
|
| |
102-8803 |
[1] |
KIT-RECEPTACLE (3-PIN) |
|
| |
|
|
(INCLUDES RECEPTACLE AS & WEDGE) |
|
| |
155-2260 |
[1] |
KIT-CONNECTING PLUG (3-PIN) |
|
| |
|
|
(INCLUDES PLUG AS & WEDGE) |
|
| 12 |
222-4086 |
[1] |
HARNESS AS (ENGINE ELECTRONIC) |
|
| |
102-8802 |
[1] |
KIT-RECEPTACLE (2-PIN) |
|
| |
|
|
(INCLUDES RECEPTACLE AS & WEDGE) |
|
| |
102-8803 |
[1] |
KIT-RECEPTACLE (3-PIN) |
|
| |
|
|
(INCLUDES RECEPTACLE AS & WEDGE) |
|
| |
155-2255 |
[1] |
KIT-CONNECTING PLUG (12-PIN) |
|
| |
|
|
(INCLUDES PLUG AS & WEDGE) |
|
| |
155-2260 |
[3] |
KIT-CONNECTING PLUG (3-PIN) |
|
| |
|
|
(EACH INCLUDES PLUG AS & WEDGE) |
|
| |
155-2270 |
[7] |
KIT-CONNECTING PLUG (2-PIN) |
|
| |
|
|
(EACH INCLUDES PLUG AS & WEDGE) |
|
| |
160-7690 |
[1] |
PLUG AS-CONNECTOR (70-PIN) |
|
| |
3S-2093 |
[2] |
STRAP-CABLE (MODULE CONNECTOR) |
|
| 13 |
067-2551 |
[1] |
CLIP |
|
| 14 |
197-8395 Y |
[1] |
SENSOR GP-PRESSURE (AIR INLET MANIFOLD) |
|
| 15 |
2V-3216 |
[2] |
CLIP |
|
| 16 |
197-8391 Y |
[1] |
SENSOR GP-TEMPERATURE (AIR INLET MANIFOLD) |
|
| 17 |
3E-4353 |
[2] |
WASHER-HARD (11X25X3-MM THK) |
|
| 18 |
4D-7794 |
[1] |
CLIP |
|
| 19 |
4K-8864 |
[2] |
CLIP (LOOP) |
|
| 20 |
4P-8134 |
[3] |
CLIP (LADDER) |
|
| 21 |
5P-4115 |
[2] |
WASHER-HARD (7.2X19X2-MM THK) |
|
| 22 |
6V-5048 |
[3] |
SEAL-O-RING |
|
| 23 |
6V-5049 |
[1] |
SEAL-O-RING |
|
| 24 |
6V-5215 M |
[2] |
BOLT (M8X1.25X16-MM) |
|
| 25 |
6V-5839 |
[1] |
WASHER (11X21X2.5-MM THK) |
|
| 26 |
6V-6317 M |
[2] |
BOLT (M10X1.5X20-MM) |
|
| 27 |
6V-7981 M |
[1] |
BOLT (M10X1.5X70-MM) |
|
| 28 |
6V-8214 M |
[2] |
BOLT (M6X1X20-MM) |
|
| 29 |
6V-8837 M |
[1] |
BOLT (M6X1X16-MM) |
|
| 30 |
8M-2770 |
[1] |
CLIP (LOOP) |
|
| 31 |
8M-2771 |
[1] |
CLIP |
|
| 32 |
9S-8002 |
[1] |
PLUG (7/16-20-THD) |
|
| 33 |
9M-1974 |
[2] |
WASHER-HARD (8.8X16X2-MM THK) |
|
| 34 |
9S-4191 |
[1] |
PLUG (9/16-18-THD) |
|
| 35 |
9X-8267 |
[1] |
WASHER (6.6X12X2-MM THK) |
|
| 36 |
197-8394 Y |
[1] |
SENSOR GP-PRESSURE (FUEL) |
|
| |
M |
|
METRIC PART |
|
| |
Y |
|
SEPARATE ILLUSTRATION |
|
